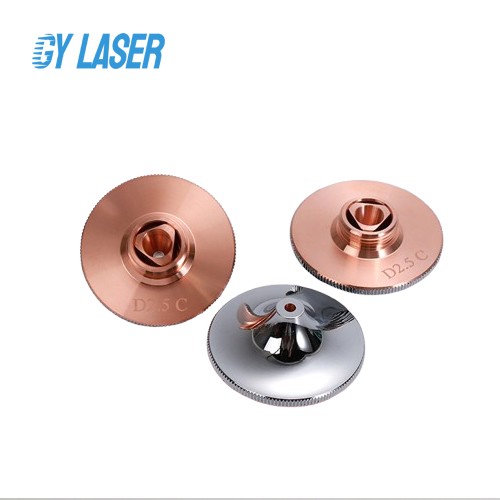

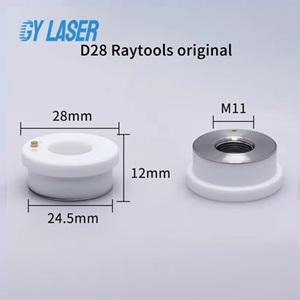

The laser nozzle, also known as the copper nozzle, is one of the most critical components in laser cutting applications. Positioned at the lower end of the cutting head, the nozzle plays a vital role in directing the laser beam and auxiliary gas onto the material being cut.

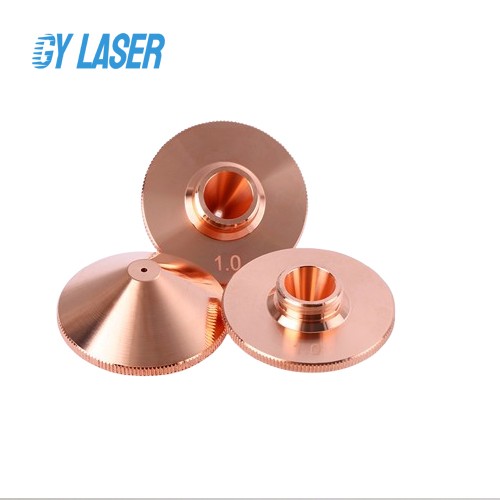

Types of Laser Nozzles:
Single-Layer Laser Nozzle:
Usage: Typically used for melting cutting applications.
Auxiliary Gas: Nitrogen is commonly employed as the auxiliary gas.
Materials Cut: Suitable for cutting stainless steel, aluminum plates, and other metals.
Specifications: Available in sizes ranging from 1.4mm to 3.0mm.
Flow Rate: The single-layer nozzle generally has a slower gas flow rate, making it ideal for cutting non-ferrous materials.

Double-Layer Laser Nozzle:
Usage: Generally used for oxidation cutting.
Auxiliary Gas: Oxygen is used as the auxiliary gas.
Materials Cut: Best for cutting carbon steel.
Specifications: Available in sizes ranging from 1.5mm to 3.0mm.
Flow Rate: The double-layer nozzle has a faster gas flow rate, suitable for high-speed cutting. However, the cut surface may oxidize and appear blackened.

Nozzle Size Selection:
The diameter of the nozzle determines the gas flow rate directed at the cutting material, which significantly affects the removal of molten material. A larger airflow entering the cut results in a stronger ability to eject molten material.
Thickness Consideration: Theoretically, as the thickness of the sheet metal increases, a larger nozzle should be used. However, larger nozzle diameters increase the likelihood of sparks and molten material splattering upward, which can shorten the lifespan of the internal lenses.

Choose the appropriate laser nozzle size based on the material thickness and type of cutting required to achieve optimal results.

Standard Nozzle size：
